Discover

SANDRO DUAL

The Most Advanced Technology, Hybrid system

755nm Alexandrite & 1064nm Nd: YAG


sandro_dual_01 (1).png
  • Simultaneous use of 755nm and 1064nm through Hybrid Mode

  • Stable output of Square pulse based on pulse train

  • Application of optimal top hat mode

  • Real time sensing of skin surface temperature after later irradiation

Performance
&
Precision



FEATURES

Dual wavelengths
& Cooling

The combined laser of 2 different wavelengths and mediums (755nm Alexandrite & 1064nm Nd:YAG)

Gas cooling




Hybrid Mode

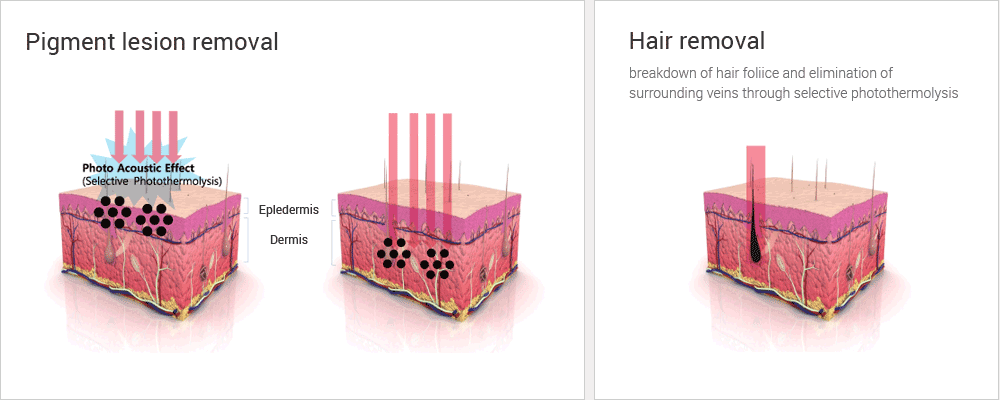

Hybrid mode as well as 755nm and 1064nm modes for better efficiency in treatments of pigments,
vascular lesion, hair removal and skin rejuvenation(Genesis mode).




Light-weighted Handpiece

Realization of various scan sizes(2 to 20mm) with detachable handpiece tips








1.

Hair Removal

2.

PIGMENTED LESIONS

3.

VASCULAR LESIONS

3.

SKIN REJUVENATION

INDICATION


Hand Pieces



SPECIFICATIONS

Irradiation Type               Alexandrite & Nd:YAG Hybrid Mode
--------------------------------------
Pulse Energy                                                    50J (Alexandrite)
                                                                                     80J (Nd:YAG)
                                                                          60J (Hybrid mode)

--------------------------------------

Pulse Duration                     0.2 to 300ms, 5 to 50ms (Hybrid)

--------------------------------------

Repetition Rate                        0.5 to 10Hz, Up to 2Hz (Hybrid)

--------------------------------------

Spot size                                                 2,3,5,7,10,12,15,18, 20mm
Attachable cartridges

--------------------------------------

Cooling system                         SCS gas (Skin Cooling Spray)
                                                      Air Cooling connector(Option)

--------------------------------------
Electrical requirements     220/230V,50/60Hz, 8kVA(Hybrid)
--------------------------------------
Dimension                                        470(W)x900(D)x1100(H) mm
--------------------------------------
Weight                                                                                      110kg
--------------------------------------
